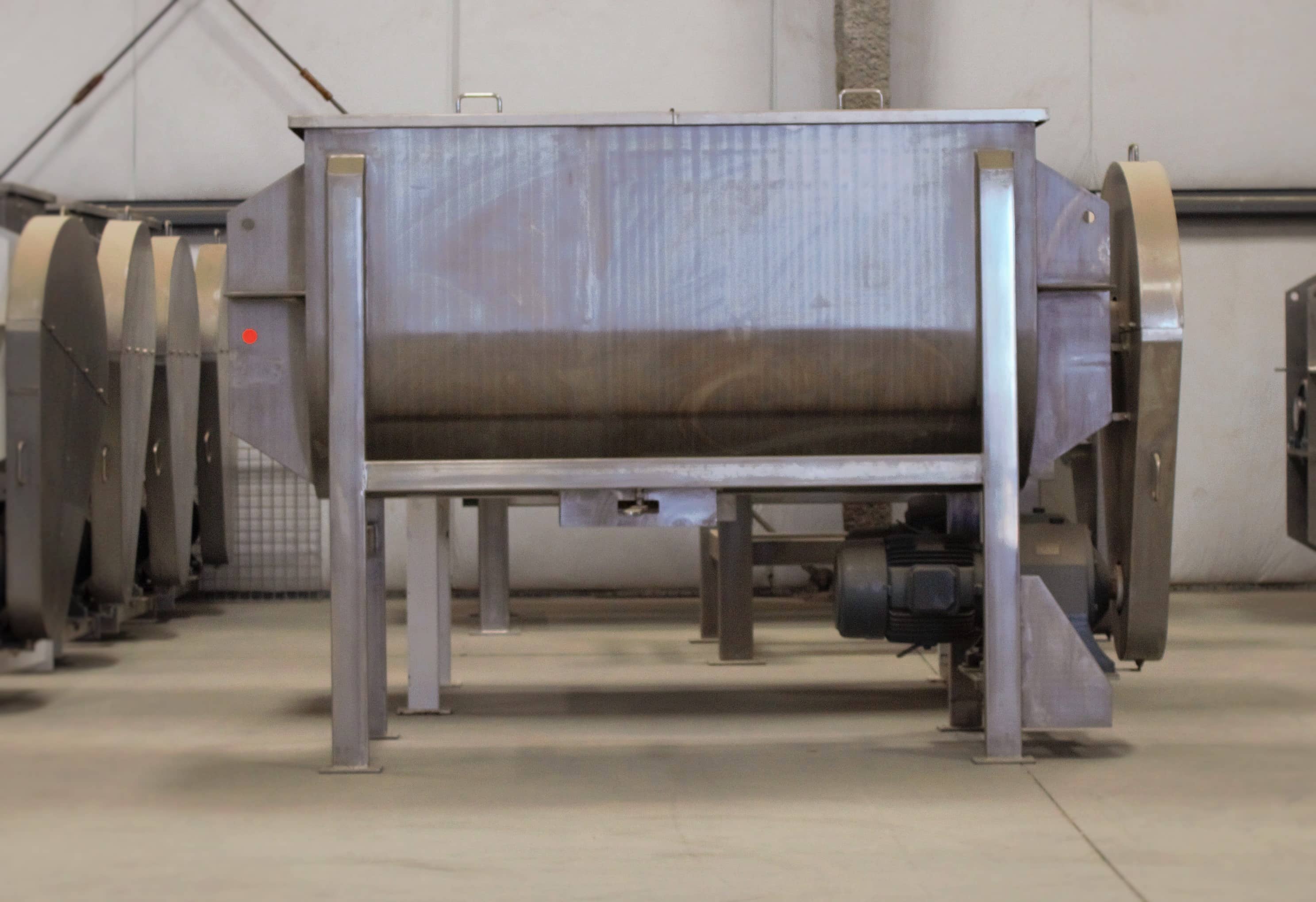

100 Cubic Foot Ribbon Blender
L100CS - 100 Cubic Foot Chain Drive All Stainless Steel Ribbon Blender
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on the remaining blender against manufacturing defects.
Specifications
| Description | L100CS |
|---|---|
| 2 Lid / 2 Grate | 100 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Chain Drive |
| Heavy Duty | Turns at 25 RPM |
| Horsepower | 30 (Service Factor 1.20+) |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 75.1 / 37.6 |
| Centered Discharge | 8" with Pivot Style Gate |
| Overall | L- 127” W- 55.5” H- 87” |
| Tub Size | L- 96” W- 46” H- 51” |
| Tub/Sidewall Thickness | 5 mm |
| Solid Stainless Steel Main Shaft Diameter | 5" |
| Discharge Shroud to Floor | 30.5" |
| Shipping Weight | 4,750 lbs. |
| Working Capacity (Gallons) | 748 |
| Working Capacity (Liters) | 2,832 |
