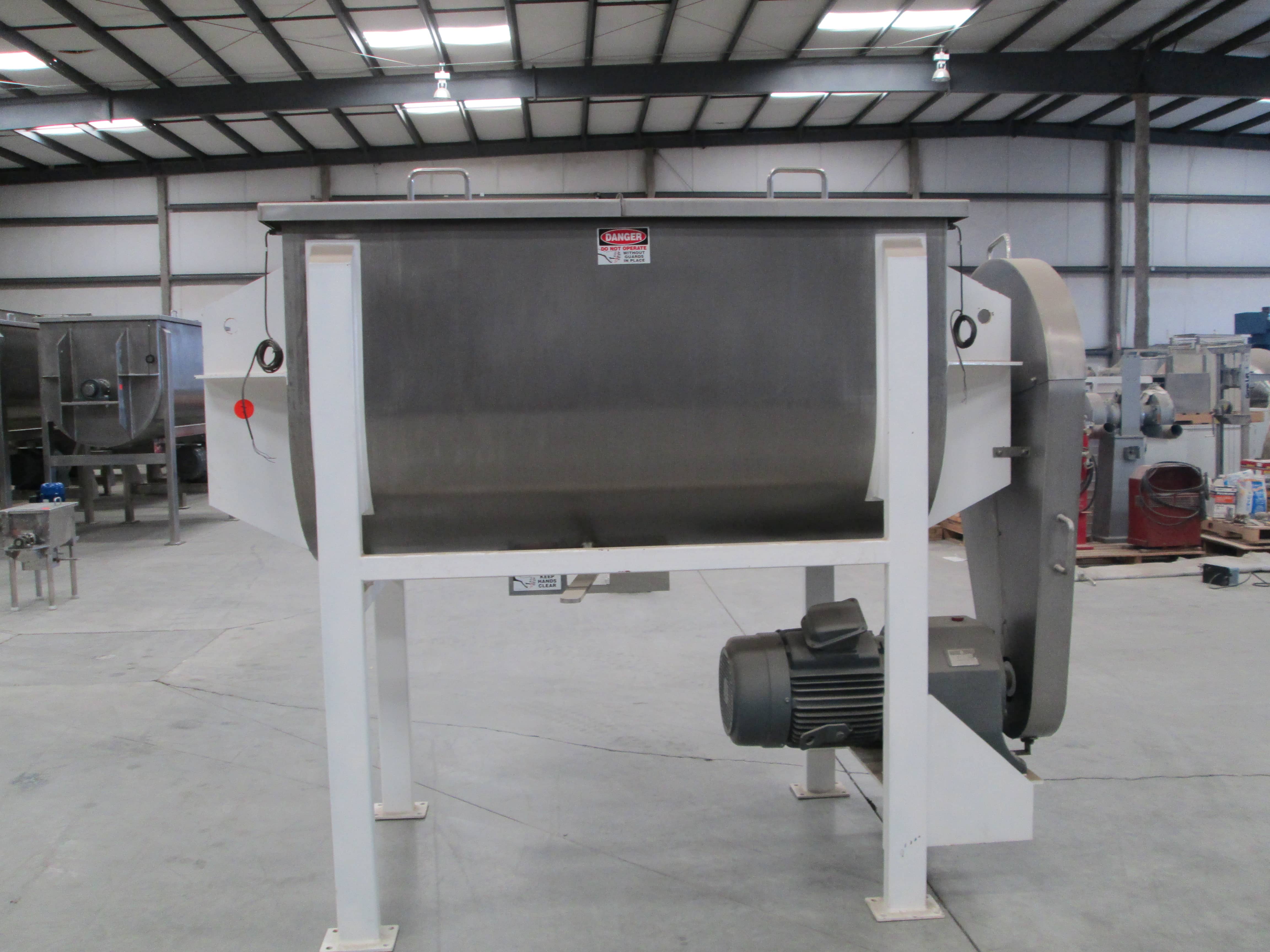

35 Cubic Foot Ribbon Blender
L035CSC - 35 Cubic Foot Chain Drive Stainless Steel with Carbon Steel Ribbon Blender
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on remaining blender against manufacturing defects.
Specifications
| Description | L035CSC Carbon Steel with Epoxy Paint |
|---|---|
| 2 Lid / 2 Grate | 35 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Chain Drive |
| Heavy Duty | Turns at 43 RPM |
| Horsepower | 15 (Service Factor 1.20+) |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 37.7 / 18.9 |
| Centered Discharge | 6" with Pivot Style Gate |
| Overall | L- 90" W- 40.5" H- 72" |
| Tub Size | L- 64" W- 33" H- 36" |
| Tub/Sidewall Thickness | 4 mm |
| Solid Stainless Steel Main Shaft Diameter | 3.5" |
| Discharge Shroud to Floor | 31.875" |
| Shipping Weight | 3,150 lbs. |
| Working Capacity (Gallons) | 262 |
| Working Capacity (Liters) | 991 |
