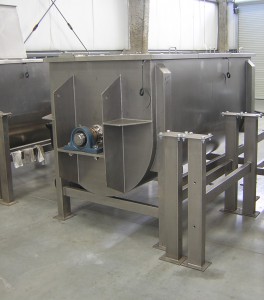

200 Cubic Foot Ribbon Blender
L200CS - 200 Cubic Foot Chain Drive All Stainless Steel Ribbon Blender
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Pneumatic Sliding Gate or Sanitary Butterfly Valve
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on the remaining blender against manufacturing defects.
Specifications
| Description | L200CS |
|---|---|
| 3 Lid / 3 Grate | 200 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Chain Drive (on separated motor bed) |
| Heavy Duty | Turns at 25 RPM |
| Horsepower | 50 (Service Factor 1.20+) |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 127 / 63.5 |
| Centered Discharge | 10" with Pneumatic Sliding Gate |
| Overall | L- 153” W- 101” H- 140.5” (plus leg extension) |
| Tub Size | L- 118” W- 59” H- 64” |
| Tub/Sidewall Thickness | 6 mm |
| Solid Stainless Steel Main Shaft Diameter | 6" |
| Discharge Shroud to Floor | Pneumatic Discharge: 49" / Sanitary Butterfly Valve: 54" |
| Shipping Weight | 8,500 lbs. |
| Working Capacity (Gallons) | 1,496 |
| Working Capacity (Liters) | 5,663 |
