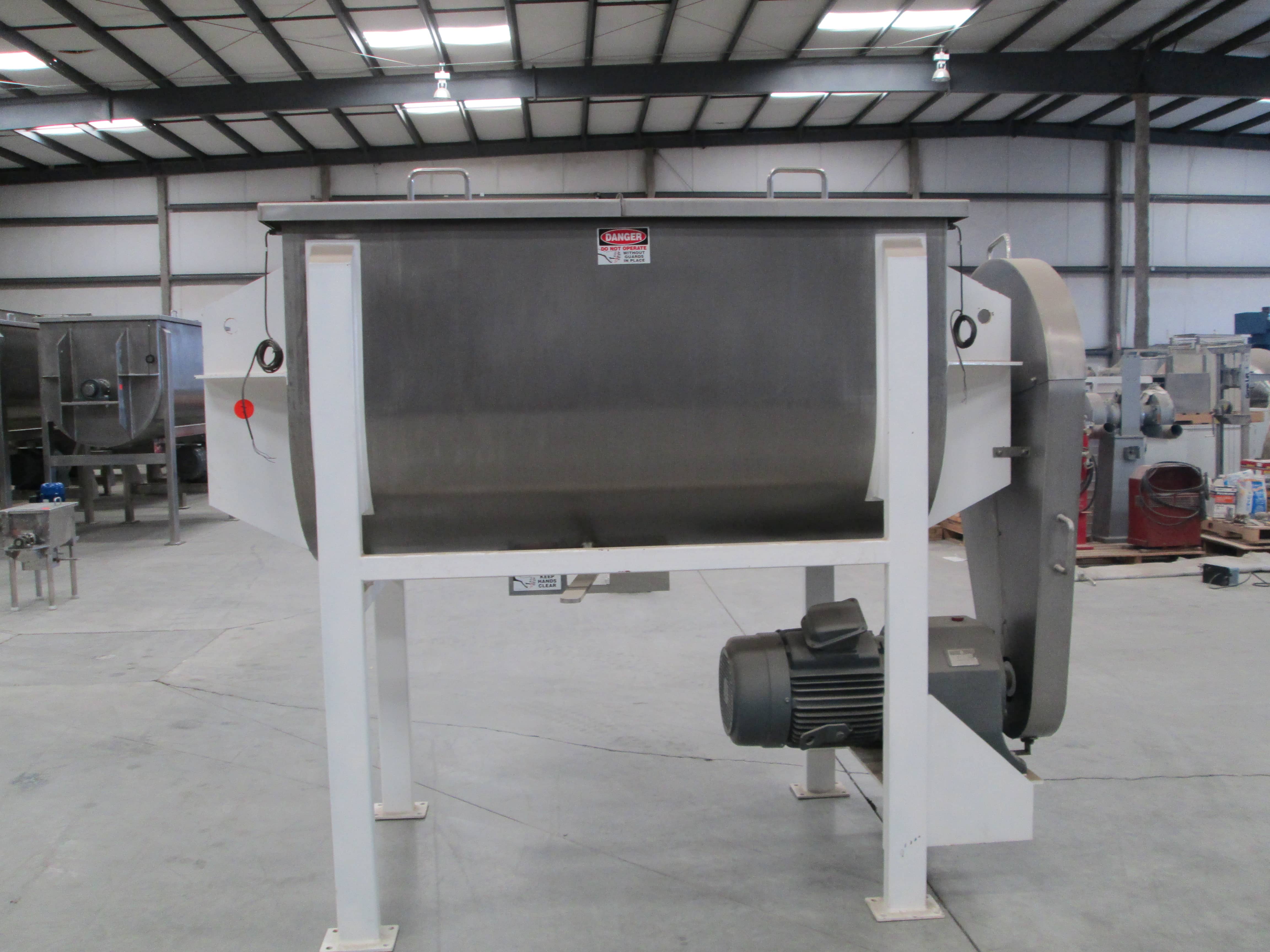

50 Cubic Foot Ribbon Blender
L050CSC - 50 Cubic Foot Chain Drive Stainless Steel with Carbon Steel Ribbon Blender
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on the remaining blender against manufacturing defects.
Specifications
| Description | L050CSC Carbon Steel w/ Epoxy Paint |
|---|---|
| 2 Lid / 2 Grate | 50 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Chain Drive |
| Heavy Duty | Turns at 39 RPM |
| Horsepower | 15 (with Service Factor of 1.20+) |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 37.7 / 18.9 |
| Centered Discharge | 6" with Pivot Style Gate |
| Overall | L- 104" W- 45.5" H- 77" |
| Tub Size | L- 78" W- 36" H- 39" |
| Tub/Sidewall Thickness | 4 mm |
| Solid Stainless Steel Main Shaft Diameter | 4" |
| Discharge Shroud to Floor | 29.75" |
| Shipping Weight | 3,600 lbs. |
| Working Capacity (Gallons) | 374 |
| Working Capacity (Liters) | 1,416 |
